Automatic High Efficiency Melamine Press Machine For Tableware

The Automatic High Efficiency Melamine Press Machine for Tableware is engineered for compression molding of melamine plates, bowls, cups, trays, spoons, and other household or commercial tableware products. Combining hydraulic pressing, PLC control, and adjustable heating technology, this machine delivers stable pressure, precise temperature control, and consistent molding performance—ideal for melamine tableware factories seeking enhanced productivity, reliable quality, and simplified operation.

• PLC control system for simple and accurate machine operation
• Adjustable pressing pressure, curing time, and mold temperature
• Stable hydraulic system for consistent tableware molding
• Fast operating cycle increases daily production capacity
• Uniform heating supports smooth surfaces and reliable curing
• Heavy-duty machine frame improves stability during pressing
• Suitable for different tableware molds and product dimensions
• Safety protection devices help reduce operational risks
• Easy maintenance and convenient access to key components
• Machine configuration can be customized for production requirements

Technical specifications may vary according to machine model, mold size, tableware type, and production capacity.

• Melamine plates / dinner plates / serving plates
• Rice bowls / soup bowls / salad bowls
• Cups / mugs / saucers
• Food trays / compartment trays / serving trays
• Spoons / ladles / other melamine utensils
• Restaurant tableware / hotel tableware / household dinnerware
• Custom-designed melamine products

1. The measured melamine moulding compound is placed into the heated mold
2. The operator starts the preset production program through the control panel
3. The hydraulic system closes the mold and applies controlled pressure
4. Heat and pressure cure the material into the required tableware shape
5. The mold opens automatically after the preset molding cycle
6. The molded product is removed for trimming, polishing, and inspection

The PLC control system allows operators to set and monitor main production parameters from the touchscreen. Pressure, temperature, curing time, and machine movements can be adjusted according to the mold and raw material. Stored settings simplify repeat production and reduce differences between batches. Manual and automatic operating modes make mold setup, testing, and daily production more convenient.

The hydraulic system is engineered to provide smooth movement and stable molding pressure. Consistent pressure distribution helps reduce common defects such as incomplete molding, uneven surfaces, and dimensional variations. The robust machine structure is suitable for continuous industrial operation and helps maintain molding accuracy during long production cycles.

The heating system provides adjustable temperature control for the upper and lower heating plates. Uniform heat distribution supports proper curing of melamine moulding compound and contributes to:

• Smooth product surfaces
• Clear patterns and decorative finishes
• Consistent color appearance
• Reduced molding defects
• Stable product dimensions
• Reliable batch-to-batch quality

We can configure the machine according to your product and factory requirements, including:

• Pressing capacity
• Working table dimensions
• Mold opening stroke
• Daylight and machine height
• Heating plate design
• PLC and electrical components
• Local voltage and frequency
• Machine color and branding
• Safety guarding
• Auxiliary production equipment

Each machine undergoes comprehensive inspection and functional testing before delivery. Main inspection procedures include:

• Hydraulic pressure testing
• Heating temperature inspection
• PLC and touchscreen testing
• Electrical system inspection
• Machine movement testing
• Safety device verification
• Trial production when molds and materials are available
• Final appearance and packaging inspection

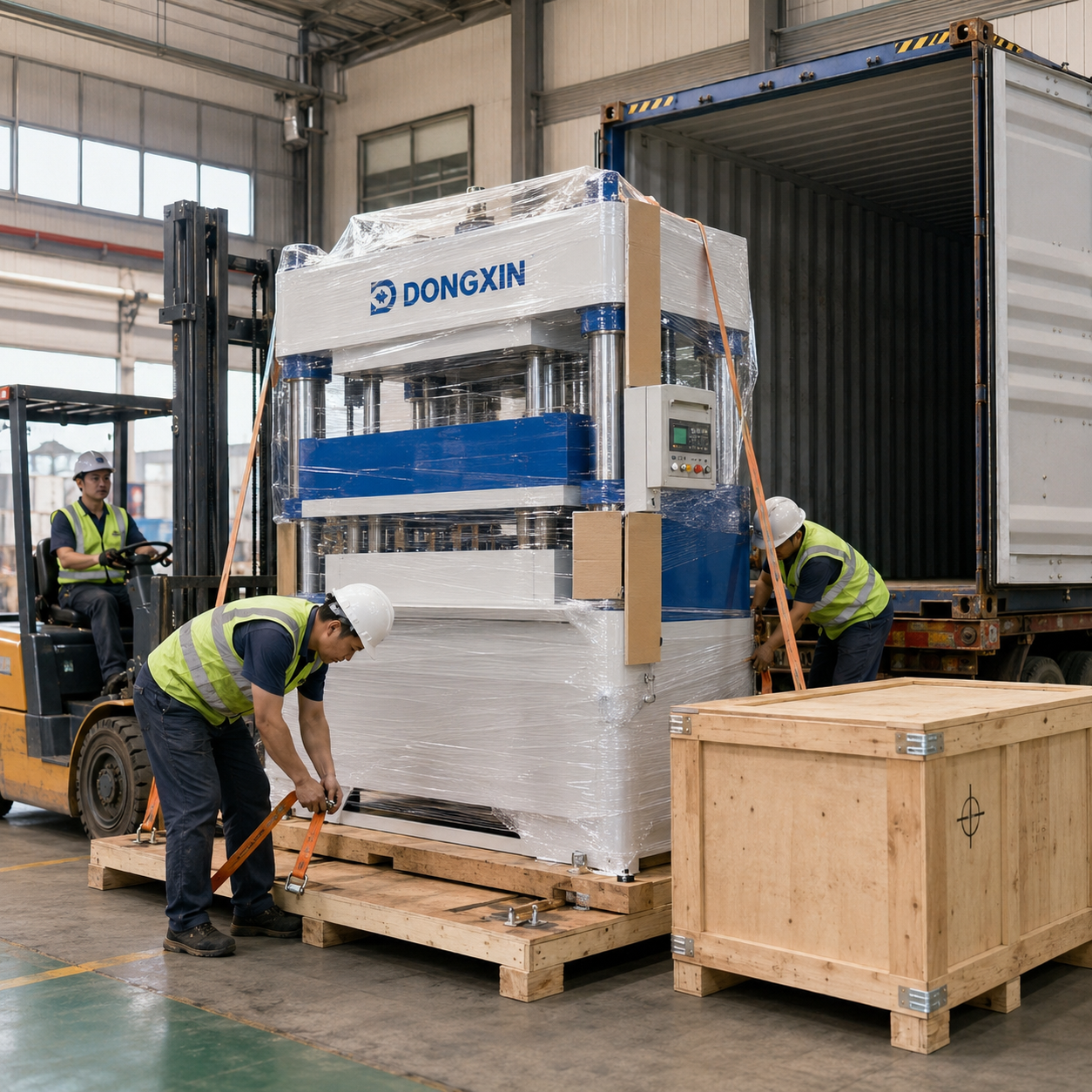

The machine is protected with moisture-resistant materials and securely packed for export transportation. Depending on the model and shipping requirements, reinforced wooden packaging or container loading protection can be provided. Shipping marks, machine documents, and packing details can be prepared according to the customer's import requirements.

In addition to the Automatic High Efficiency Melamine Press Machine, a complete production line can include:

• Melamine powder preheating machine
• Hydraulic compression molds
• Automatic weighing and feeding equipment
• Tableware trimming machine
• Grinding and polishing equipment
• Dust collection system
• Air compressor
• Product inspection and packaging equipment

What products can this melamine press machine manufacture?
It can produce melamine plates, bowls, cups, trays, saucers, spoons, and other compression-molded tableware. The final product depends on the selected mold and machine configuration.

Can the machine specifications be customized?
Yes. Pressing capacity, table size, stroke, daylight, voltage, control components, and machine color can be configured according to your production requirements.

Is the machine easy to operate?
The machine uses PLC and touchscreen control. Operators can adjust production parameters through the control interface and select automatic or manual operating modes.

Can you provide molds for melamine tableware?
Molds can be designed according to product samples, drawings, dimensions, or 3D files. Mold configuration should be confirmed before production.

How do I choose the correct machine capacity?
Machine selection depends on product size, cavity quantity, mold dimensions, required pressure, and target output. Please send your product information for a suitable recommendation.
